Description

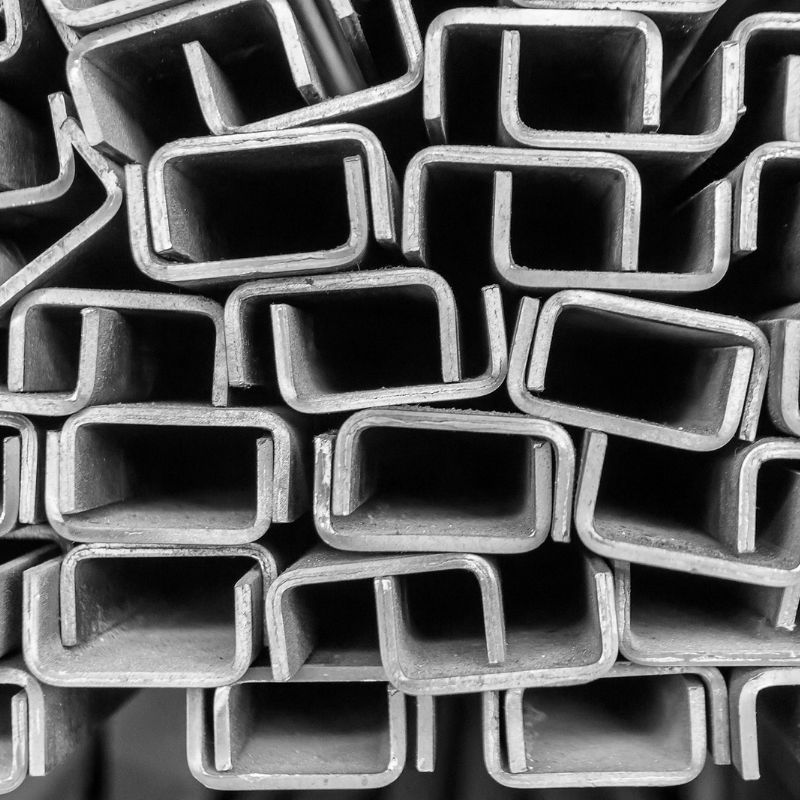

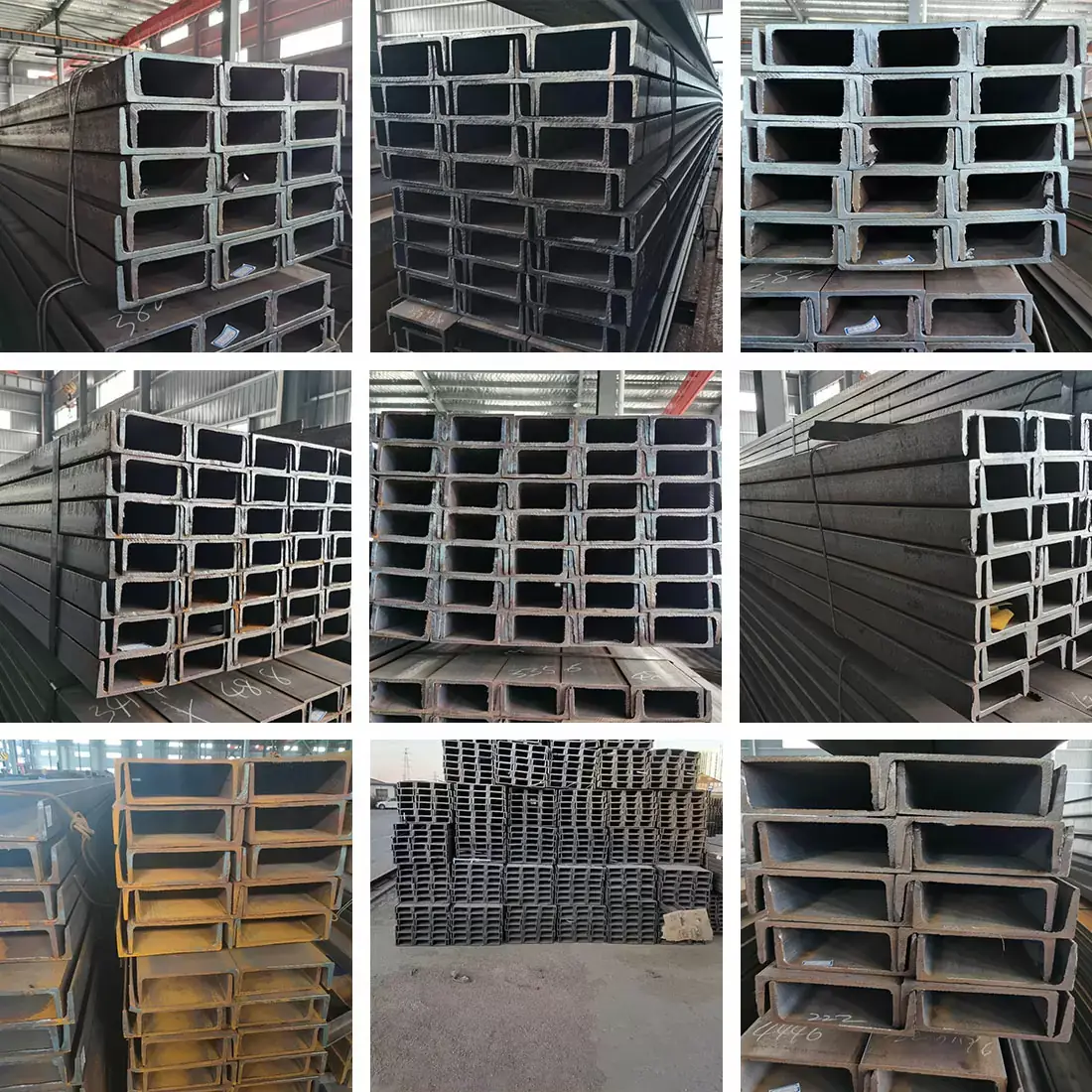

Channel steel is a long strip of steel with a groove-shaped section. Its specifications are expressed in millimeters of waist height (h) × leg width (b) × waist thickness (d), such as 100 × 50 × 8, which means that the waist height is 100 mm, the leg width is 50 mm, and the waist thickness is 8 mm. Channel steel is mainly used in building structures, vehicle manufacturing and other industrial structures, and channel steel is often used in conjunction with I-beam.
| Thickness | 1.5mm-25mm | |||
| Length | 6-12m or according to customer’s special request | |||
| Height | 80-160mm | |||
| Tolerance | Thickness: +/-0.02mm, height:+/-2mm | |||
| Material grade | Q195 Q195L Q235 Q235B Q345B | |||
| Technical | Hot /Cold rolled | |||
| Standard | AISI,ASTM,DIN,JIS,BS,GB/T | |||
| Certificate | UL,NEMA,ISO,CE,SGS,BV,BIS | |||
| Package | tied up with steel strips and wrapped with water proof paper | |||
| Application Range | Widely used in steel structure construction purlin, wall beam, also can combine into a lightweight roof, bracket and other construction. In addition, can also be used for mechanical column, beam of light manufacturing and arm, etc. |
|||
| Advantages | 1. Reasonable price with excellent quality 2. Abundant stock and prompt delivery 3. Rich supply and export experience, sincere service |
|||
