ASTM A36 Steel Channel
ASTM A36 steel channel is hot-rolled, low carbon steel section with good properties including welding, machinability and ductility. A36 structural channel have two types of sizes: UPN & UPE – tapered flanges and parallel flanges respectively. If you can’t find the specific size in the table below, bespoke channel dimensions are available.

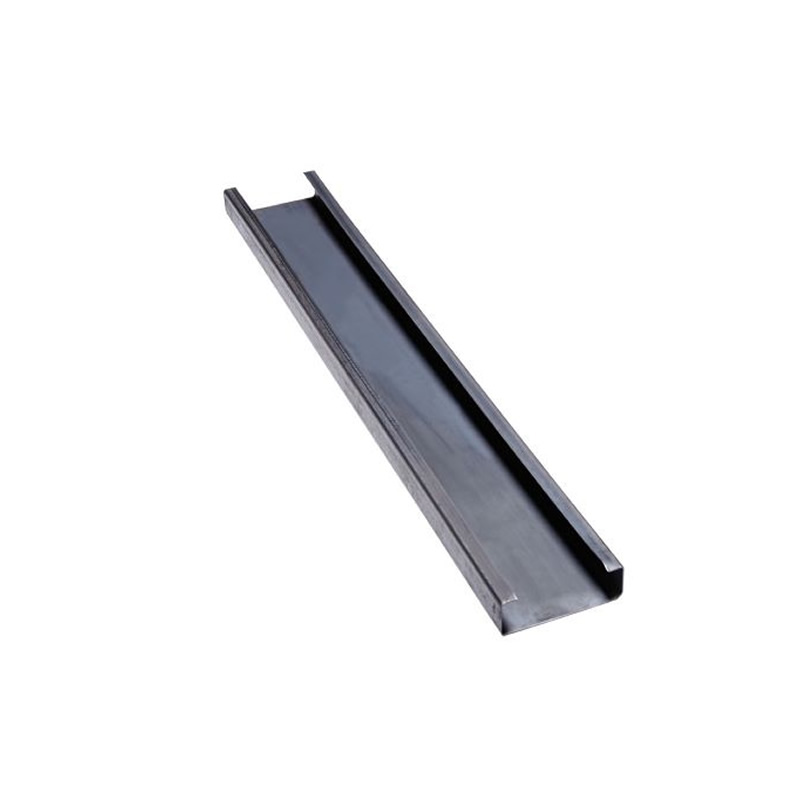

ASTM A36 steel c channel
ASTM A36 mild steel channel could be galvanized or primed to add a layer of protective coating to resist environment or weather corrosion. The specific zinc coating can be ordered depending on your requirements.
Applications:
- Building or construction supporting components.
- Framing supports for truck, trailer, equipment.
- Ceiling channel system.
- Everyday uses like worktable.
Product description:
- Item: ASTM A36 Steel Channel.
- Dimensions: UPN & UPE.
- Web Width: 80 – 200 mm.
- Web Thickness: 6 – 8.5 mm (UPN) & 4.5 – 5.2 mm (UPE).
- Flange Width: 45 – 75 mm (UPN) & 40 – 76 mm (UPE).
- Flange Thickness: 8 – 11.5 mm (UPN) & 7.4 – 9.0 mm (UPE).
- Length: 3 m, 6 m, or as required.
- Surface Treatment: non-treatment, galvanised or primer.
- Note: Special channel sizes are available on order.
Technical data
| Steel grade | Styles | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % | Silicon, % |
| A36 | Steel shapes | 0.26 | — | 0.04 | 0.05 | ≤0.40 |
NOTE: Copper content is available when your order is specified.
| Steel grade | Styles | Tensile strength, ksi [MPa] | Yield point, min, ksi [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
| A36 | Steel shapes | 58 – 80 [400 – 550] | 36 [250] | 20 | 21 |
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
| UPN80 | 80 | 45 | 6 | 8 | 8.64 |
| UPN100 | 100 | 50 | 6 | 8.5 | 10.6 |
| UPN120 | 120 | 55 | 7 | 9 | 13.4 |
| UPN140 | 140 | 60 | 7 | 10 | 16 |
| UPN160 | 160 | 65 | 7.5 | 10.5 | 18.8 |
| UPN180 | 180 | 70 | 8 | 11 | 22 |
| UPN200 | 200 | 75 | 8.5 | 11.5 | 25.3 |
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
| UPE80 | 80 | 40 | 4.5 | 7.4 | 7.05 |
| UPE100 | 100 | 46 | 4.5 | 7.6 | 8.59 |
| UPE120 | 120 | 52 | 4.8 | 7.8 | 10.4 |
| UPE140 | 140 | 58 | 4.9 | 8.1 | 12.3 |
| UPE160 | 160 | 64 | 5 | 8.4 | 14.2 |
| UPE180 | 180 | 70 | 5.1 | 8.7 | 16.3 |
| UPE200 | 200 | 76 | 5.2 | 9 | 18.4 |
